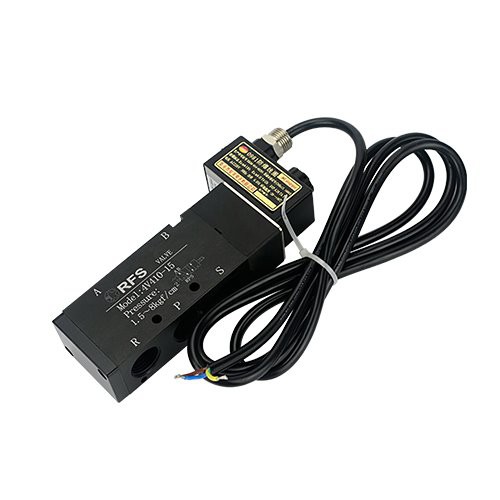

5 Way Pneumatic Solenoid Valve
4V400 Series valve is the biggest range in our 4V series ,Only provide G1/2 port ,Terminal can be choose from Black connector ,LED Connector ,Leading Wire type ,Voltage can be customized from 6V - 240V AC/DC
Description
4V400 Connection Size G3/8 & G1/2
4V400 Series valve is the biggest range in our 4V series ,Only provide G1/2 port ,Terminal can be choose from Black connector ,LED Connector ,Leading Wire type ,Voltage can be customized from 6V - 240V AC/DC

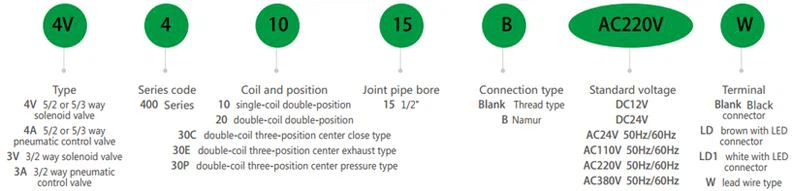

Ordering Code
Mode | 4V410-15 | 4V420-15 | 4V430C-15 | 4V430E-15 | 4V430P-15 |
4A410-15 | 4A420-15 | 4A430C-15 | 4A430E-15 | 4A 430P-15 | |
Type | 5/2 | 5/3 | |||
Flow rate | 50mm2（Cv=2.79） | 30mm2（Cv=1.68） | |||
Model | 3V410-15 | 3V420-15 | 3A410-15 | 3AV420-15 |
Type | 3/2 | |||
Flow rate | 50mm2（Cv=2.79） | |||
Connection ports | Inlet = Outlet = Exhaust = G1/2" | |||
Media | Clean air | |||
Working type | Pilot | |||
Working pressure | 0.15 ~ 0.8MPa | |||
Max. pressure | 1.2MPa | |||
Ambient temp | -5 ~ 50℃ | |||
Voltage tolerance | ±10% | |||
Power | AC:4.5VA DC:3W | |||
Insulation class | F class. IP65 | |||
Terminal | Flying Lead Or Din43650B PIN | |||
Frequency | 5 cycles/s | |||
Response time | 0.05s | |||
