2 Way 2 Position Brass Solenoid Valve
Brass Solenoid valve which is Direct Acting type ,Diaphrgam Structure ,Can be work at Zero Pressure ,DIN Coil and Leading wire coil can be choosed ,220VAC and 24VDC is normal voltage ,Other voltage can be customized ,NPT thread is available
Description
Brass Solenoid valve which is Direct Acting type ,Diaphrgam Structure ,Can be work at Zero Pressure ,DIN Coil and Leading wire coil can be choosed ,220VAC and 24VDC is normal voltage ,Other voltage can be customized ,NPT thread is available

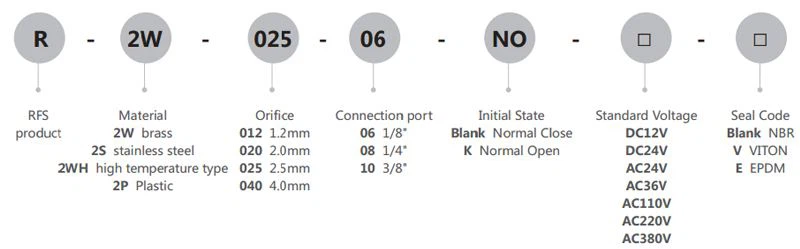

Ordering Code
Mode | Media | Working type | Pattern | Orifice (mm) | Cv Valu | Connection ports | Fluid viscosity | Working pressure （MPa） | Max. pressure （MPa） | Working temp （℃） | Rated voltage | Power | Valve body material | Seal material |
R2W025-06 | Air Water Oil | Direct action | Normally close | 2.5 | 0.23 | 1/8" | ＜ 20CST | Air Water Gas 0~0.7 | 1.0 | -5-80 | DC12- 24V | DC20.9W | Brass | NBR VITON EPDM |
R2W025-08 | 2.5 | 0.23 | 1/4" | |||||||||||
R2W040-10 | 4 | 0.60 | 3/8" | |||||||||||
R2W012-06 | 1.2 | 0.05 | 1/8" | Air Water Gas 0~2.0 | 3.5 | |||||||||
R2W012-08 | 1.2 | 0.05 | 1/4" | |||||||||||
R2W020-10 | 2 | 0.15 | 3/8" |
Mode | A | B | C | D | G |
2W025-06 | 66 | 30 | 75 | 40.5 | G1/8" |
2W025-08 | 66 | 30 | 75 | 40.5 | G1/4" |
2W040-10 | 72.5 | 32 | 83.5 | 55 | G3/8" |
2W012-06 | 66 | 30.3 | 75 | 40.5 | G1/8" |
2W012-08 | 66 | 30.3 | 75 | 40.5 | G4/8" |
2W020-10 | 74 | 32.2 | 85.5 | 52.5 | G3/8" |
FAQ:
1,Q: What is your terms of delivery?
A: EXW, FOB, CIF, etc.
2.Q: How can I place an order?
A: You can contact any of our sales person for an order. Please provide the details of
your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype, TradeManger or QQ or WhatsApp or other instant ways, in case of any delays.
3.QUALITY CONTROL
We have a QC person stay on the production lines due to the inspection. All products must have been inspected before delivery. we do an inline inspection and final inspection.
1.All raw material checked once it arrives at our factory.
2.All pieces and logo and all details checked during production.
3.All packing details checked during production.
4.All production quality and packing checked on final inspection after finished.
4.Q: May I know what’s the nearest airport from your company?in case I visit your company.
A: XiaoShan airport in Hangzhou,welcome to visit us.
Hot Tags: 2 way 2 position brass solenoid valve, China, suppliers, manufacturers, factory, custom, wholesale, drain valve with strainer, Carbon gas adsorption molecular sieve, Pressure Switch with Digital Display, automatic two way drain valve, 2 position 3 way solenoid air selector valve, molecular sieve for cryogenic air separation
