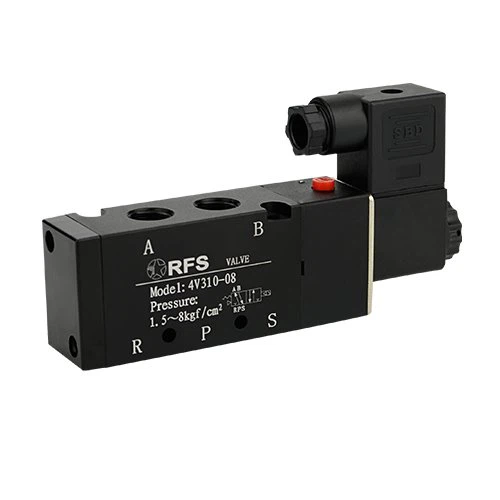

3 Way Water Solenoid Valve
4V300 Seriers valve which is Pilot type soleniod valve ,Including G1/4 and G3/8 connector port ,Can work at 1.5-8bar ,Thread type and Namur type are available, in this series ,4V310-10 Pnuematic valve is most regular item for Thread type ,And 4V310-08B is Most regular item for Namur type.
Description
4V300 Connection Size G1/4 & G3/8
4V300 Seriers valve which is Pilot type soleniod valve ,Including G1/4 and G3/8 connector port ,Can work at 1.5-8bar ,Thread type and Namur type are available, in this series ,4V310-10 Pnuematic valve is most regular item for Thread type ,And 4V310-08B is Most regular item for Namur type.

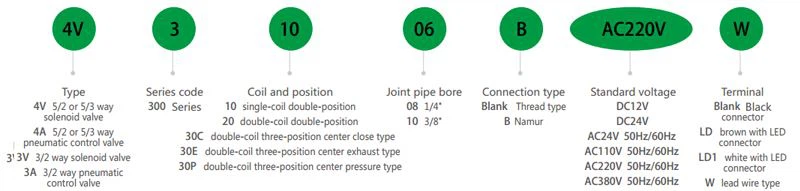

Ordering Code
Mode | 4V310-08 | 4V320-08 | 4V330C-08 | 4V330E-08 | 4V330P-08 | 4V310-10 | 4V320-10 | 4V330C-10 | 4V330E-10 | 4V330P-10 |
4A310-08 | 4A310-08 | 4A320-08 | 4A330C-08 | 4A330E-08 | 4A330P-08 | 4A310-10 | 4A320-10 | 4A330C-10 | 4A330E-10 | 4A330P-10 |
Type | 5/2 | 5/3 | 5/2 | 5/3 | ||||||
Flow rate | 25mm2（Cv=1.40） | 18mm2（Cv=1.00） | 30mm2（Cv=1.68） | 18mm2（CV=1.0） | ||||||
Model | 3V310-08 | 3V320-08 | 3A310-08 | 3A320-08 | 3V310-10 | 3V320-10 | 3A310-10 | 3A320-10 |
Type | 3/2 | 3/2 | ||||||
Flow rate | 25mm2（Cv=1.40） | 30mm2（Cv=1.68） | ||||||
Connection ports | Inlet = Outlet = Exhaust = G1/4" | Inlet = Outlet = G3/8" Exhaust = G1/4" | ||||||
Media | Clean air | |||||||
Working type | Pilot | |||||||
Working pressure | 0.15 ~ 0.8MPa | |||||||
Max. pressure | 1.2MPa | |||||||
Ambient temp | -5 ~ 50℃ | |||||||
Voltage tolerance | ±10% | |||||||
Power | AC:4.5VA DC:3W | |||||||
Insulation class | F class. IP65 | |||||||
Terminal | Flying Lead Or Din43650B PIN | |||||||
Frequency | 5 cycles/s | |||||||
Response time | 0.05s | |||||||
FAQ:
1.Q: How can I place an order?
A: You can contact any of our sales person for an order. Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype, TradeManger or QQ or WhatsApp or other instant ways, in case of any delays.
2.Q: Do you have after-sale service?
A: Yes, Good after-sale service, handling the customer complaint and solve problem for customers.
3.Q: How is the packing of products?
A: Safe packing for long distance shipping.
4.Q：Is there the products tested before shipping?
A: Yes, of course. All of our conveyor belt we all will has been 100%QC before shipping. We test every batch every day.
