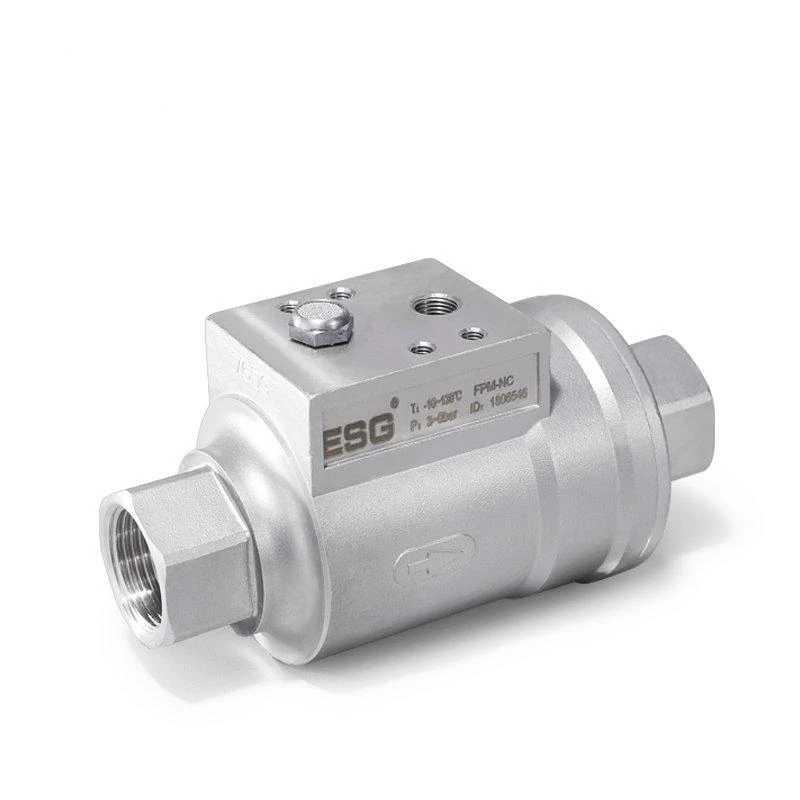

Threaded Pneumatic Shuttle Valve
The compressed air forces the piston to reciprocate to open and close the valve. The medium pressure acts on the valve seat and the piston is almost immune to resistance, so the valve can be opened or closed quickly. The improved internal valve structure makes the medium flow better and the pressure loss is smaller.
Description
Application
Beer, Drink,Air separation,Filling,Ceramics,Semiconductor cleaning,Car,etc.
Characteristics
1. Small size, beautiful appearance, long life
It adopts stainless steel valve body, which has high appearance and corrosion resistance. The piston and the seal are combined into one, which is simple and reliable, has an extremely long service life, and can be installed in any direction.
2. Fast speed, small pressure loss
The fluid flow in the valve body is better. Because the medium pressure acts on the valve seat, the piston is hardly interfered by the resistance, so the switching speed is fast and the pressure loss is small.
3. Vacuum resistant
Excellent sealing performance for vacuum lines.
Technical parameters
Fluid Pressure: Max 16bar (232psi)
Control Pressure: 3-8bar (43.5-116psi)
Control Medium: clean compressed air or neutral gas
Body Material: CF8M/CF8
Seal Material: EPDM EPDM/fluoro rubber FPM
Applicable Media: FPM is suitable for most media except steam.
EPDM is suitable for hot water and steam, not for oils, fuels, etc.
Medium Temperature: -20 ° C - +150 ° C (FPM),
-20°C — +130°C (EPDM)
Ambient Temperature: -20 ° C — +80 ° C
Control Type: single acting normally closed, normally open, double acting normally closed, double acting free state
Connection Type: threaded (BSP, NPT, BSPT)
Leakage Rating: DIN EN 12266 Class A
Product specification
SIZE | DN10 | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 |
Q | 3/8" | 1/2' | 3/4H | 1" | 1 1/4" | 1 1/2" | 2" |
A (mm) | 56 | 61 | 72 | 78 | 94 | 104 | 116 |
(D D (mm) | 46 | 52 | 64 | 69 | 86 | 96 | 108 |
SW (mm) | 22 | 26.5 | 32 | 41 | 50 | 56 | 70 |
B (mm) | 33 | 35 | 40 | 43 | 51 | 56 | 62 |
L (mm) | 98 | 112 | 135 | 143 | 165 | 180 | 207 |
W(Kg) | 0.76 | 0.94 | 1.43 | 1.85 | 2.98 | 3.66 | 5.64 |
FAQ:
1.Q: If l don't know what kind of product I need, what should I do?
A: Just take it easy, you just need to provide us "working pressure", "temperature" and "media."Then, we can suggest the most suitable product to you, or we provide you our e-catalog for your reference, you choose the suitable model, you only need to tell us the model number.
2.Q: How can I place an order?
A: You can contact any of our sales person for an order. Please provide the details of
your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype, TradeManger or QQ or WhatsApp or other instant ways, in case of any delays.
3.Q: Do you provide sample ? Is it free?
A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.
4.Q: What is your terms of delivery?
A: EXW, FOB, CIF, etc.
